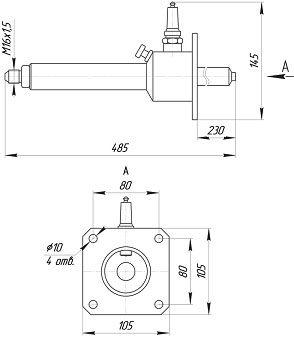

PPТ-0.2G.22.00.000 pilot burner general drawing.
GENERAL DATA
Pilot burner designed for ignition of gas, supplied to burner device of line heaters such as PPТ-0.2G, PP-0.63A и PP-1.6A.
features
Operation conditions should correspond to UHL by GOST 15150-69.
Placement category – 1 by GOST15150-69.
Certified as heater component.
|
№ п/п |
Parameter |
Value |
|
1 |
Burner input gas pressure MPa (kgf/cm2). |
0.07…0.3 (0.7…3) |
|
2 |
Gas rated consumption, nm3/hr |
1.0 |
|
3 |
Air excess ratio α (general) at rated heating capacity, max |
1.05 |
|
4 |
Mass, kg, max. |
3 |
