P-101/2 general layout.
GENERAL DATA
Pipe furnace P-101/2 is a radiant-convective furnace with spiral coil, which has horizontal convective coil placement and upper combustion product output through the fume stack.
features
Operation conditions should correspond to U, HL by GOST 15150-69.
Placement category –1 by GOST15150-69.
COMMON SPECIFICATIONS
|
Parameter |
Value |
|
Nominal heat release, MW |
1.657 |
|
Product temperature, °С: - furnace input, within; - furnace output, max. |
+150…190 +280 |
|
Design efficiency , % |
82 |
|
Coil pressure, MPa (kgf/cm2): - working, max; - hydro tested. |
3.6 (36) 4.5 (45) |
|
Heated medium parameters - title; - density, t/m3; - fuel consumption, m3/hr. |
90% TEG solution 1.125 90 |
|
Fuel parameters - title; - density, kg/m3; - lower heat value, kcal/kg (kcal/nm3); - fuel consumption, kg/hr (nm3/hr). |
natural gas 0.709 10959 (7781) 159.3 (224.7) |
|
Coil surface area, m2: - radiant; - convective. |
61.43 51.48 |
|
Average heat denisty, Kcal/m2•hr: - radiant; - convective. |
16300 6000 |
|
Service life, years, min: - coil; - furnace |
10 15 |
|
Furnace mass, kg max: - in idle state. |
33950 |

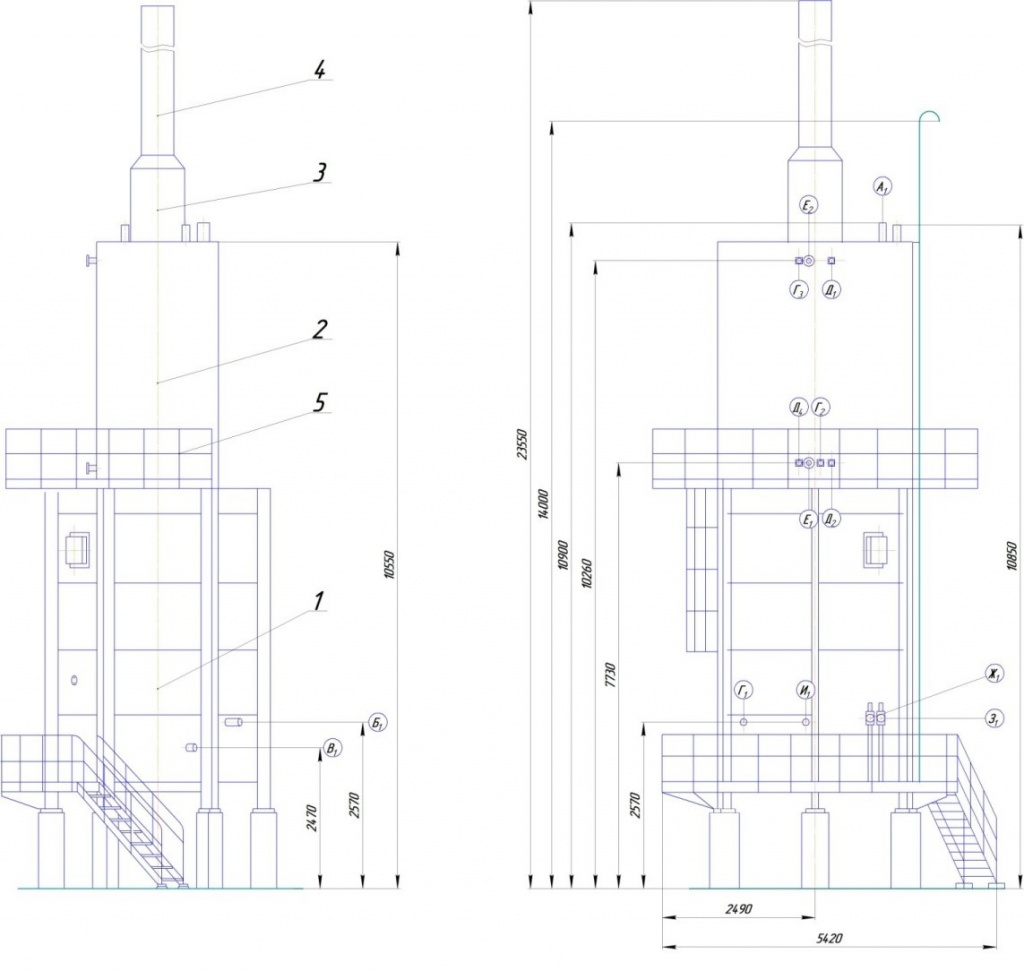

1) radiant section;
2) convection section;
3) regulating gate;
4) fume stack;
5) platform
P-101/2 general drawing.
|
Chokes and Flanges Table |
|||
|
Ref |
Designation |
Qty |
DN, mm |
|
A1 |
Product inlet |
1 |
50 |
|
Б1 |
Product outlet |
1 |
76 |
|
В1 |
Steam or nitrogen input |
1 |
100 |
|
Г1 |
Underpressure measurement |
3 |
25 |
|
Д1 |
Temperature sensor |
3 |
15(M20x1.5) |
|
Е1 |
Fume gas analyzer installation choke |
2 |
15(M27x1.5) |
|
Ж1 |
Fuel gas supply |
1 |
25 |
|
З1 |
Primer inlet gas supply |
1 |
15 |
|
К1 |
Flame control sensor installation choke |
1 |
15 |
|
Л1 |
Steam inlet |
1 |
15 |
|
М1 |
Steam output |
1 |
15 |
