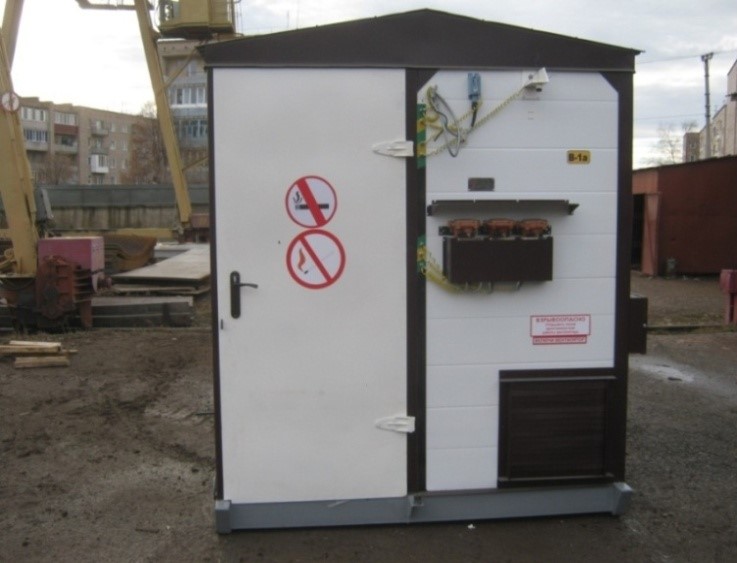

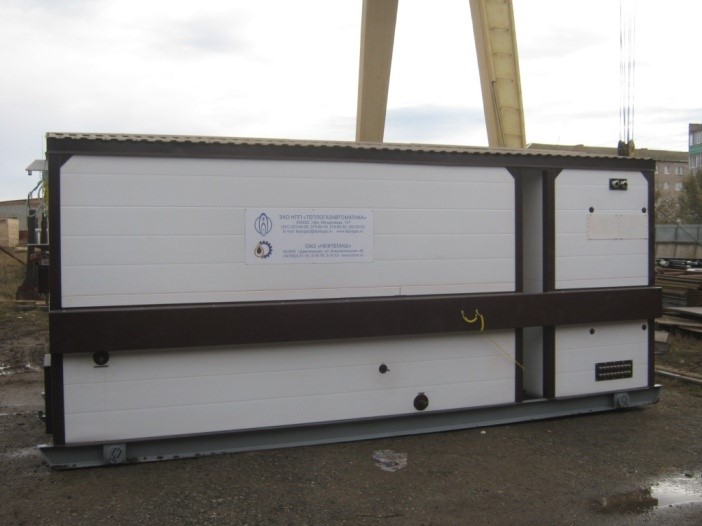

BPZhT general layout.
GENERAL DATA
Automated liquid fuel processing block BPZhT is intended for fuel processing, which is used in oil heaters (line heaters, automated furnaces for oil heating) and in other devices with flame heating.
features
Operating conditionsshould correspond to U, HL by GOST 15150-69.
Placement category –1 by GOST15150-69.
Common specifications
|
Parameter |
Value |
|
Operating injection pressure, max, MPa (kgf/cm2) |
4.0 (40) |
|
Maximal performance, dm3/sec, max |
0.22 |
|
Number of fuel pumps |
3 |
|
Rated temperature at boiler output,°С |
174.5 |
|
Volume, m3: - storage tank; - consumption tank. |
1.5 0.5 |
|
Power consumption, kW |
15 |
|
Mass, kg, max |
2200 |
|
Chokes and Flanges Table |
||||
|
Ref |
Designation |
Qty |
Nominal |
DN, mm |
|
A1 |
Oil loading |
1 |
0.02 (0.2) |
25 |
|
Б1 |
Oil loading |
1 |
- |
25 |
|
В1 |
Fuel supply |
1 |
4.0 (40) |
10 |
|
Г1,2 |
Drainage |
2 |
0.02 (0.2) |
25 |
|
Д1 |
Vent |
1 |
- |
25 |
BPZhT- basic assembly units:
1) NSh10-DZ-L gear pump;
2) NMSh25-4/4-U3 electric pump;
3) process tank;
4) rating tank;
5) SchKU control panel

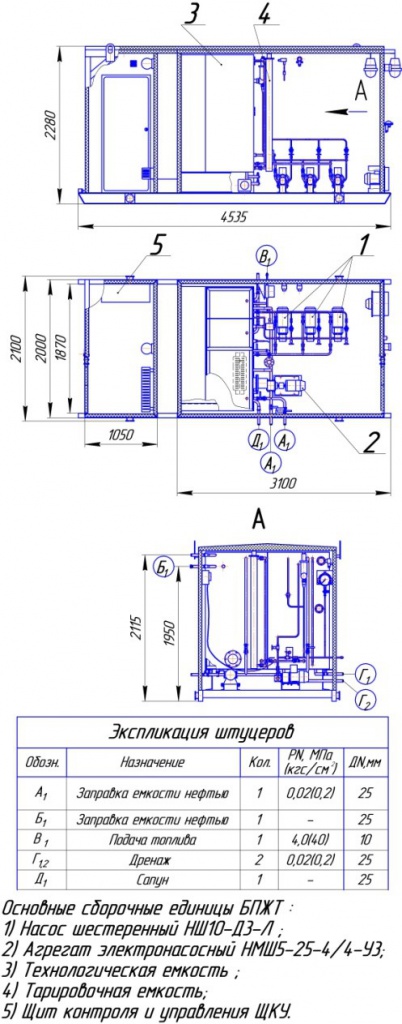

BPZhT general drawing.
