ELECTRIC PUMP POWERED CHEMICAL INJECTION UNIT UDE

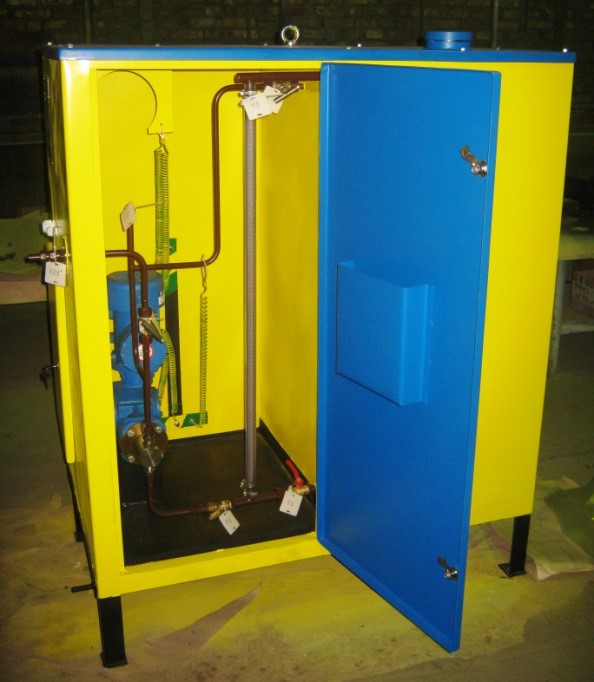

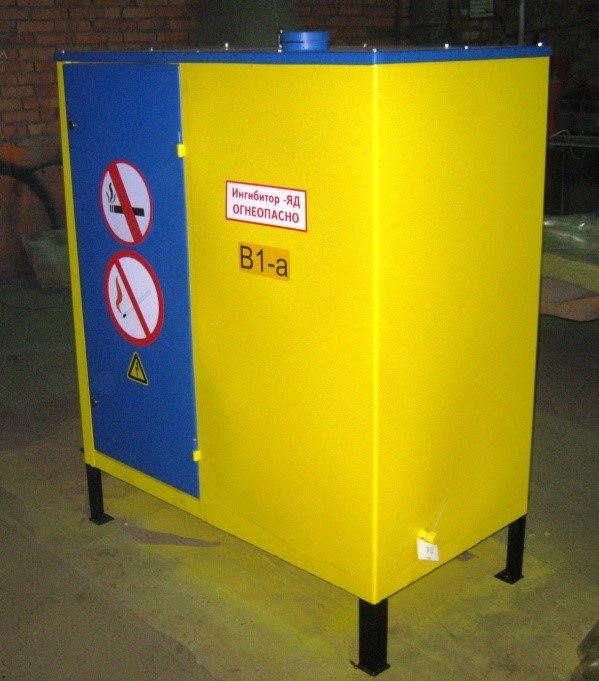

UDE general layout.

GENERAL DATA

Electric pumping injection installation UDE is intended for portioned supply of liquid inhibitors of paraffin deposits, salt deposits, corrosion and demulsifying compounds to oil wells.

To order it is possible to manufacture the injection unit UDE in any other configuration(number of pumps, pump delivery, pressure, tank volume).

features

Operating conditions should correspond to U, HL by GOST 15150-69.

Placement category –1 by GOST15150-69.

Common specifications

Parameter

Modification

100/2.5

25/4.0

10/10

2.5/10

1.6/10

1.0/10

0.63/10

 Performance ( delivery), l/hr

100

25

10

2.5

1.6

1.0

0.63

 Pressure, MPa (kgf/cm2):

 - maximal



2.5 (25)



4.0 (40)



10 (100)



10 (100)



10 (100)



10 (100)



10 (100)

Chemical parameters:

 - density, kg/m3;

- kinematic viscosity, m2/sec, max.

700-1400

0.0008

Number of injection pumps:

 - operating;

- reserve.





1

  1*

 Injection pumps type

ND 2.5 100/25

K14V

ND 2.5 25/40

K14V

ND 2.5 10/100

K14V

ND 2.5 2.5/100 K14V

ND 2.5 1.6/100

K14V

ND 1/100

K14V

ND 0.63/100

K14V

 Tank volume, m3

0.45

0.45

0.45

0.45

0.45

Life, hr, minimal:

 - average to failure;

- rated trouble-free



2500



2500

2500

2500

Servicelife, years, min

10

 Mass, kg, max

220

200

200

200

200

200

Note.*on customer’s demand



Chokes and Flanges Table

Ref

Designation

Qty

Nominal
Pressure, MPa (kgf/cm2)

DN, mm

A1,2

Chemical loading

2

0.02 (0.2)

25

Б1,2

Vent

2

-

50

В1

Chemical supply

1

6.3 (63)

10

Г1,2

Drainage

1

0.02 (0.2)

25

UDE-100/6.3 basic assembly units:

1)           frame;

2)         tank;

3)         covering

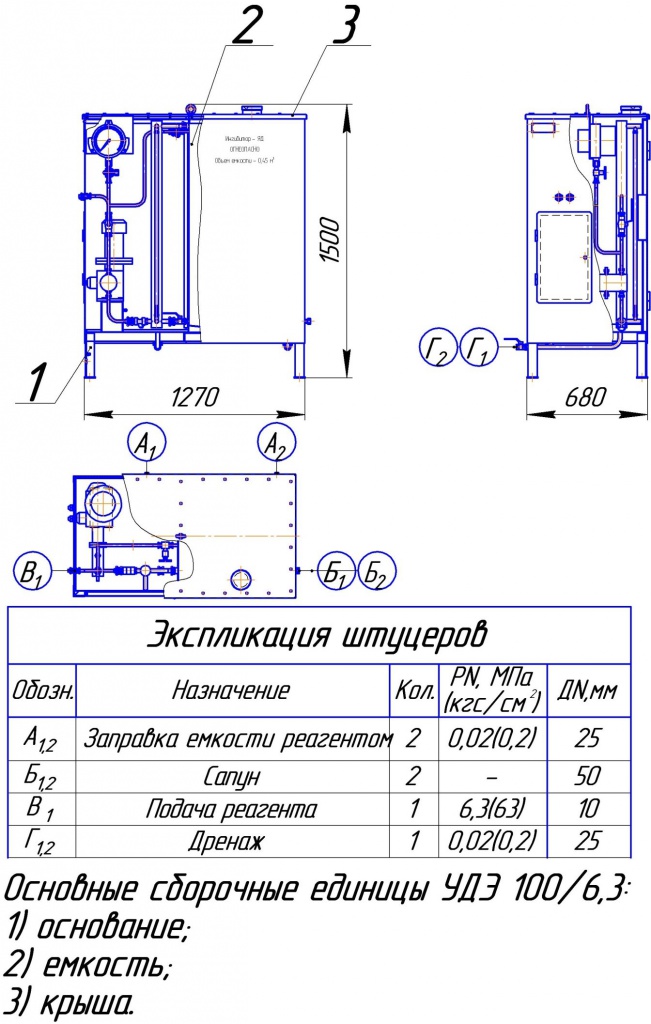

UDEgeneral drawing.
