REGULATING FLAMEPROOF ELECTRIC ACTUATION DEVICE UERV-1M

UERV-1M general layout.

GENERAL DATA

Actuation device intended for certain level maintenance of processing parameters at oil treatment units, gathering points, tank farms, oil and gas infield transport objects and pump stations via automated opening/closure of controlling elements by control device signals. The device is designed for operation in all class explosion hazard locations and zones under shelters according to PUE (Electrical installation code).

EQUIPMENT PERFORMANCE

№ п/п	UERV modification	Regulation valve type	DN, mm	Overall dimensions, mm
№ п/п	UERV modification	Regulation valve type	DN, mm	length	width	height
1	1M-25 1M-А25	25s48nzh 25nzh48nzh	25	355	400	920
2	1M-50 1M-А50		50	300	405	1230
3	1M-80 1M-А80		80	380	405	1390
4	1M-100 1M-А100		100	430	430	1565
5	1M-150 1M-А150		150	550	550	1650
6	1M-200 1M-А200		200	650	650	1940

features

Operation conditions should correspond to U, HL by GOST 15150-69.

Placement category 2 by GOST 15150-69.

COMMON SPECIFICATIONS

№ п/п	Parameter	Modification
		1M-25 1M-А25	1M-50 1M-А50		1M-80 1M-А80		1M-100 1M-А100		1M-150 1M-А150		1M-200 1M-А200
1	Nominal diameterDN, mm	25	50		80		100		150		200
2	Flow coefficient, Кv, t/hr	63	63		160		250		630		1000
3	Full stem travel, mm	12.5	25		40		60				100
4	Full stem travel time, sec
5	Nominal force on stem, N (kgf)	6300 (630)
6	Allowable stem travel accuracy, % max	±4
7	Trim leakage, % from Kv, max	0.1
8	Operating medium pressure, MPa (kgf/cm²).	6.3 (63)
9	Operating conditions: - ambient temperature , °С; - relative air humidity, %; - atmospheric pressure, kPa (mm of mercury).	minus 40… +50 95±3 84…106.7 (630…800)
10	working medium mechanical impurity size, μm max	70
11	Reliability rates, years : - average trouble-free life, hr; - specified no-failure operating time , hr; - average service life; - specified service life; - average restoration time.	1000 1000 8 3 4
12	Mass, kg, max	90		105		140		160		255		410

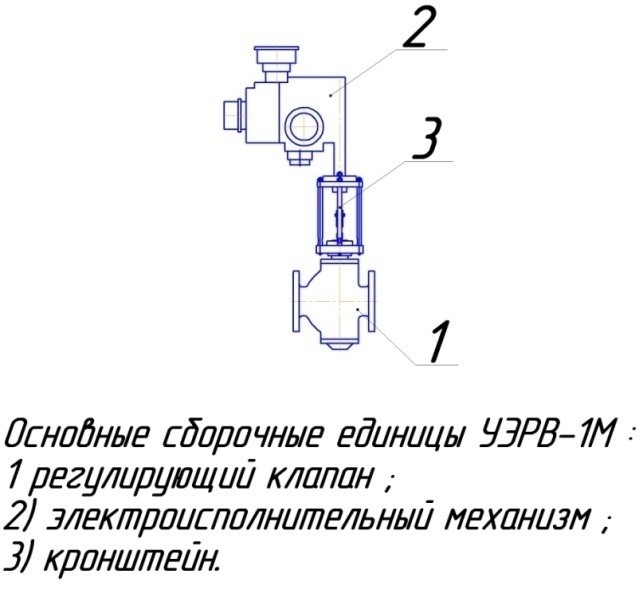

UERV-1M basic assembly units:

1) control valve;

2) electric actuaton device;

3) holder

UERV-1M general drawing.
