GENERAL DATA
Coils intended for heating of oil emulsions and oil (excluding N-402 furnace coils) to defined conditions.
All coils certified as equipment components.
features
Operating conditions should correspond to U, HL by GOST 15150-69.
Placement category – 2 by GOST15150-69.
COMMON SPECIFICATIONS
|
Equipment |
Designation |
Heated medium |
Working pressure, MPa (kgf/cm2) |
DN, mm |
Mass, kg. |
Comments |
Material design |
|
|
Tubing |
Tube sheets |
|||||||
|
PTB-10А |
PTB-10А.01.01.000 |
Oil emulsion, oil |
6.3 (63) |
150 |
7600 |
|
Steel 20, Steel 09G2S
Or any other on customer’s demand |
Steel 20H23N18
|
|
PTB-10-64 |
PTB-10-64.01.01.000 |
7780 |
|
|||||
|
PTB-10E |
PTB-10E.01.01.000 |
7600 |
double-row |
|||||
|
PTB-10E |
PTB-10E.01.02.000 |
4125 |
single-row |
|||||
|
PTB-5 |
PTB-5-40A.01.05.000 |
3580 |
double-row |
|||||
|
PTB-5 |
PTB-5-40A.01.06.000 |
2105 |
single-row |
|||||
|
PT-4-64 |
0601.02.01.00.00 |
5000 |
convective |
|||||
|
PT-4-64 |
0601.01.01.00.00 |
14500 |
radiant |
|||||
|
PP-1,6А |
PP-1.6.03.00.000 |
100 |
7000 |
|
||||
|
PP-0.63А |
PP-0.63.03.00.000 |
4000 |
|
|||||
|
PPН-3 |
PPН-3.01.00.000 |
150 |
3975 |
|
||||
|
PBT-1.6М |
PBT-1.6М.01.02.000 |
80 |
3240 |
upper |
||||
|
PBT-1.6М |
PBT-1.6М.01.03.000 |
3100 |
lower |
|||||
|
NUS-0.1 |
NUS-0.1.01.02.000 |
50 |
265 |
|
||||
|
N-402 |
UFG 307.03.01.000 |
Diesel |
3.6 (36) |
100 |
4250 |
diesel fraction |
15N5M |
|
|
N-402 |
UFG 307.03.02.000 |
3050 |
convective |
|
||||
|
N-402 |
UFG 307.03.03. 000 |
Fuel gas |
50 |
2660 |
water heating |
Steel 20 |
|
|

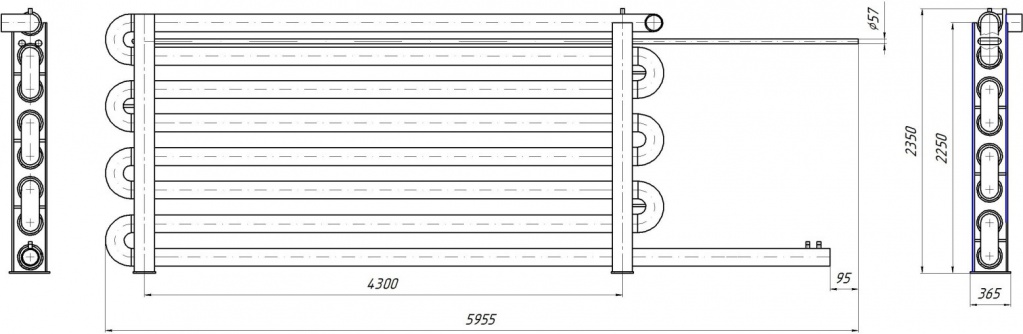

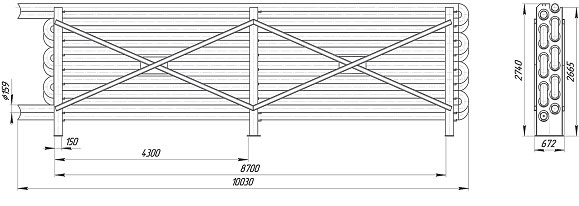

PTB-10А «PTB-10А.01.01.000» furnace coil general drawing.

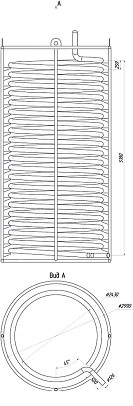

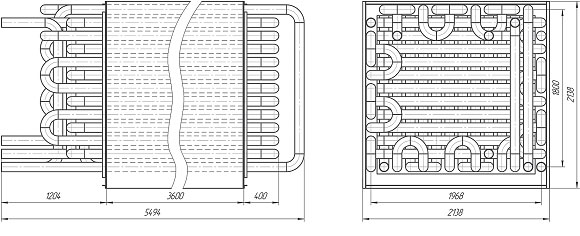

PTB-10-64 «PTB-10-64.01.01.000» furnace coil general drawing.

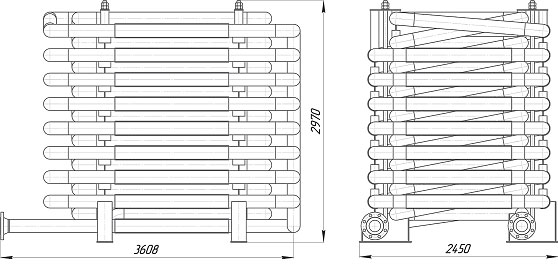

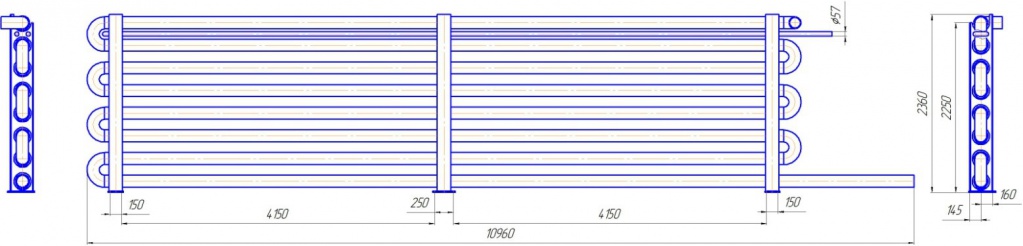

PTB-10E «PTB-10E.01.01.000» furnace double-row coil general drawing.

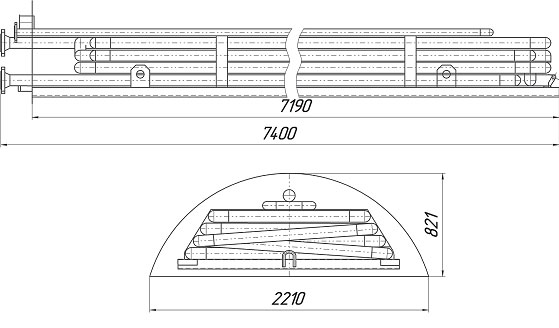

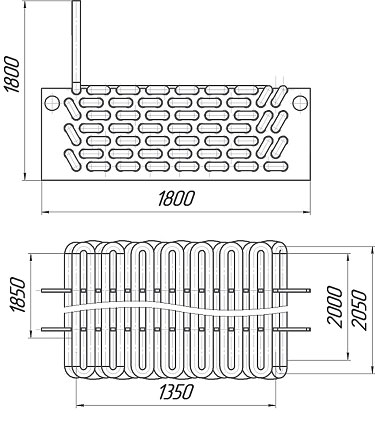

PTB-10E «PTB-10E.01.01.000» furnace single-row coil general drawing.

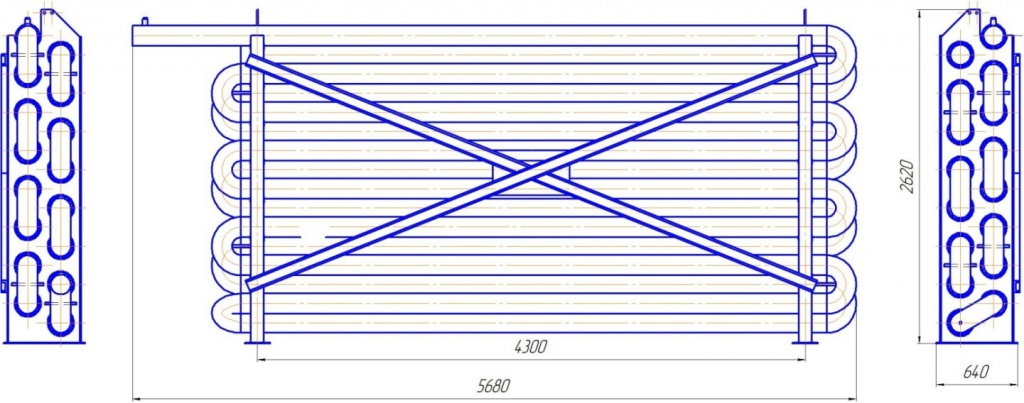

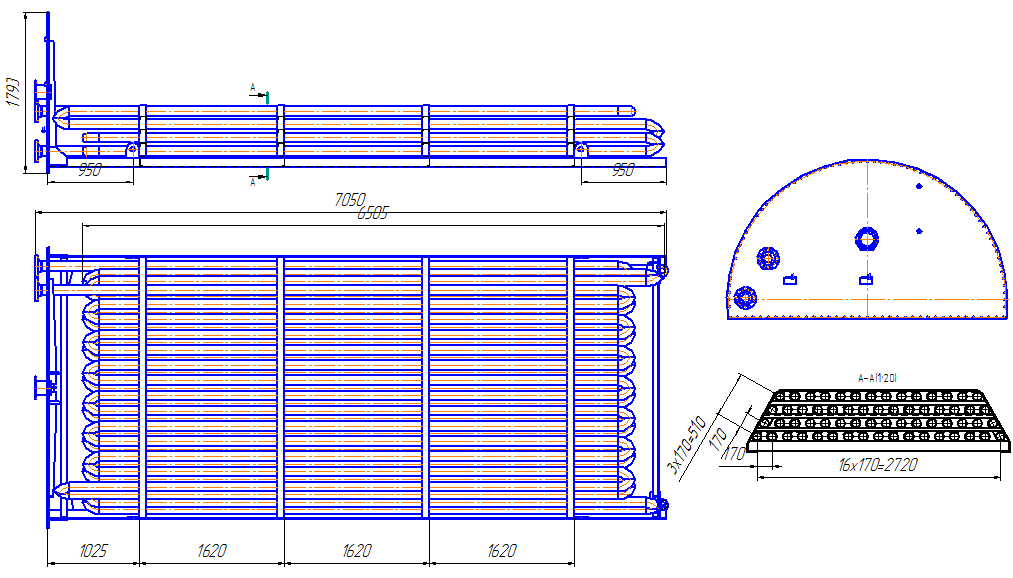

PTB-5 «PTB-5-40А.01.05.000» furnace double-row coil general drawing.

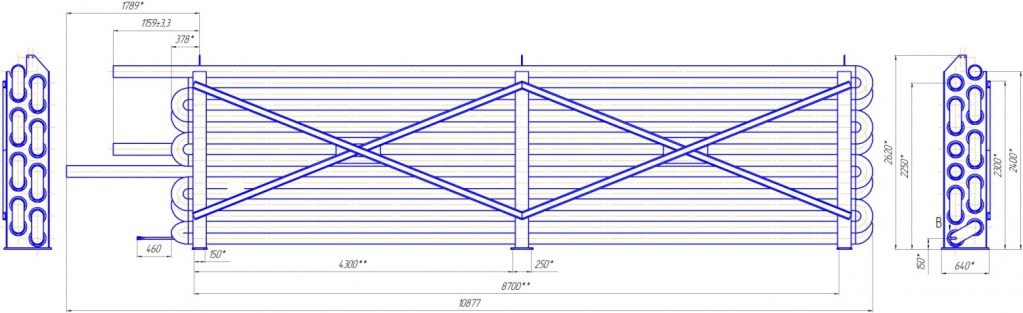

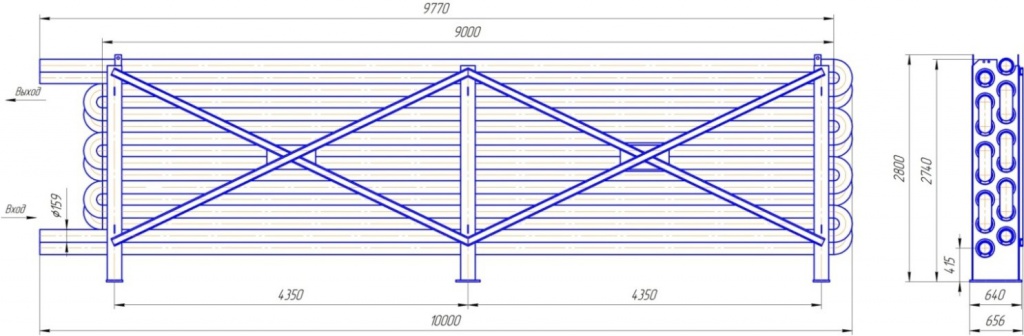

PTB-5 «PTB-5-40А.01.06.000» furnace single-row coil general drawing.

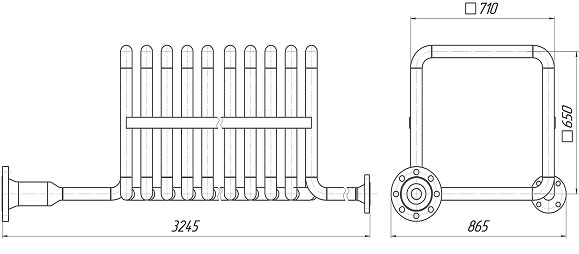

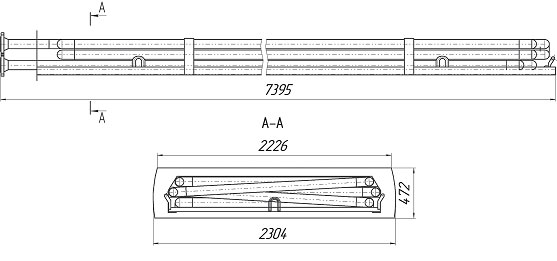

PT-4-64 «0601.02.01.00.00» convective coil general drawing.

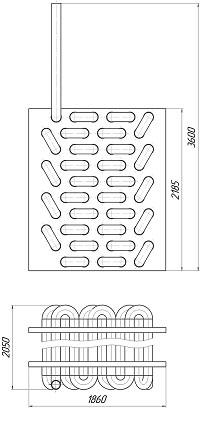

PT-4-64 «0601.01.01.00.00» radiant coil general drawing.
PP-1.6.03.00.000 coilgeneraldrawing.
PP-0.63.03.00.000 coil general drawing.
PPН-3.01.00.000 coil general drawing.
PBT-1.6М.01.02.000. upper coil general drawing.
PBT-1.6М.01.03.000 lower coil general drawing.
NUS-0.1.01.02.000 product coil general drawing.
UFG 307.03.01.000 diesel fraction coil general drawing
UFG 307.03.02.000 convective coil general drawing
UFG 307.03.03.000 water heating coil general drawing
