GENERAL DATA

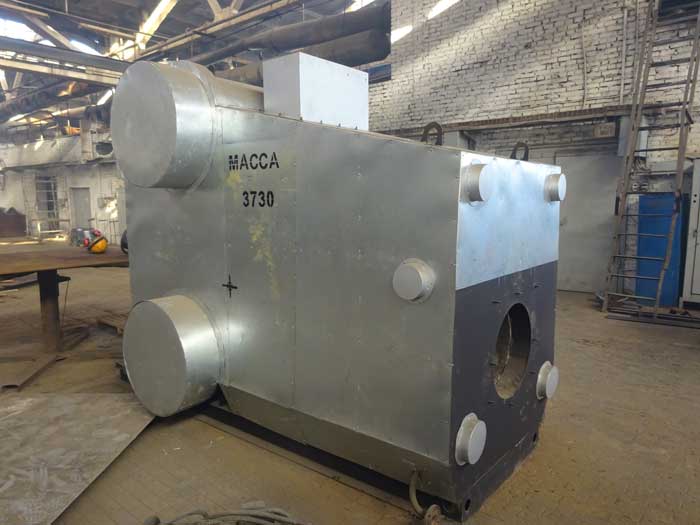

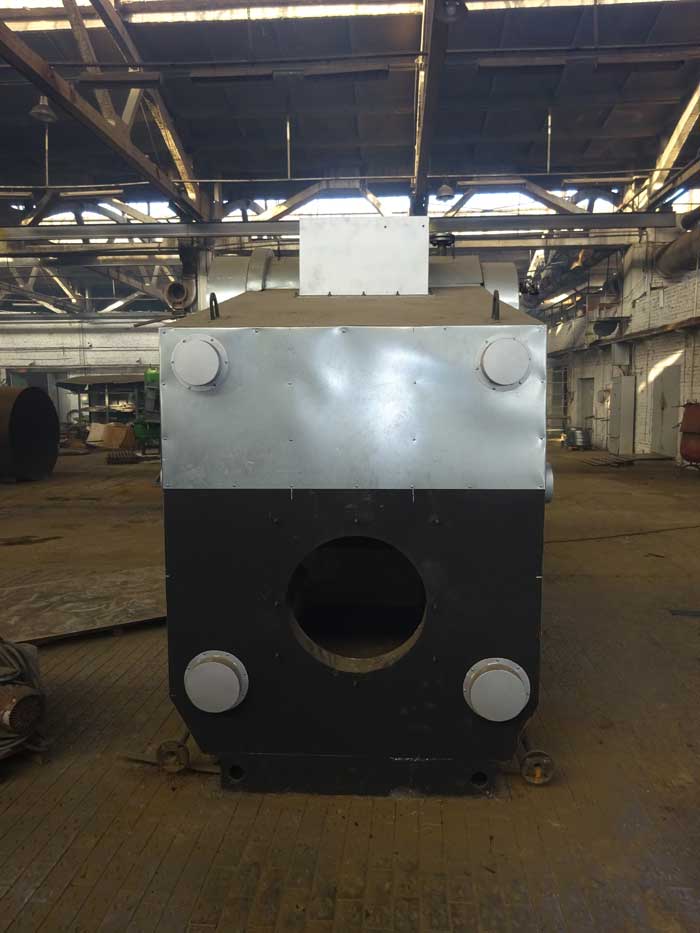

Steam boiler Е-1.0-0.9 intended for saturated steam generation with moisture content up to 3% for industrial, transportation, agricultural, processing and heating needs.
FEATURES
Climatic modification – UHL by GOST 15150-69.
Placement category – 4byGOST 15150-69.
Seismic resistance–grade 6 byMSK-64.
Steam boiler is manufactured in four modifications depending on consuming fuel type:
R –solid fuel boiler type;
M –liquid fuel (fuel oil – mazut M-100, crude oil, diesel fuel) boiler type;
G –natural or associated gas fuel boiler type;
GM – boiler runs on natural or associated gas and liquid fuel (fuel oil – mazut M-100, crude oil, diesel fuel).
COMMON SPECIFICATIONS
|
Parameter |
Value |
|||
|
E-1.0-0.9M-3 |
E-1.0-0.9G-3 |
Е-1.0-0.9R-3 |
||
|
Rated performance, t/hr |
1.0 |
|||
|
Saturated steam operating pressure, MPa |
0.8 |
|||
|
Design fuel |
Fuel oil (mazutM100) |
Gas |
Coal |
|
|
Rated fuel consumption |
74 kg/hr |
83.5 m3/hr |
147 kg/hr |
|
|
Efficiency factor, % min |
90 |
90.5 |
81.5 |
|
|
Total heating surface, m2 |
31.6 |
|||
|
Saturated steam design pressure, °С |
174.5 |
|||
|
Feeding water temperature, °С |
50±10 |
|||
|
Boiler water volume, m3 |
1.1 |
|||
|
Furnacevolume, m3 |
2.2 |
|||
|
Air excess ratio inside furnace |
1.1 |
|||
|
Feed current type |
alternate, voltage 220/380V |
|||
|
Estimated electrical power, kW |
6 |
|||
|
Boiler mass, kg, max |
4300 |
|||
|
Boiler dimensions, m, max -length -width -height |
4.2 2.35 2.9 |
|||
|
Averageservicelifebeforedecommissioningupon80000 hours in service maximum, years min maximal |
20 |
|||
