COMBUSTION CHAMBER PTB-10А.02.02.000

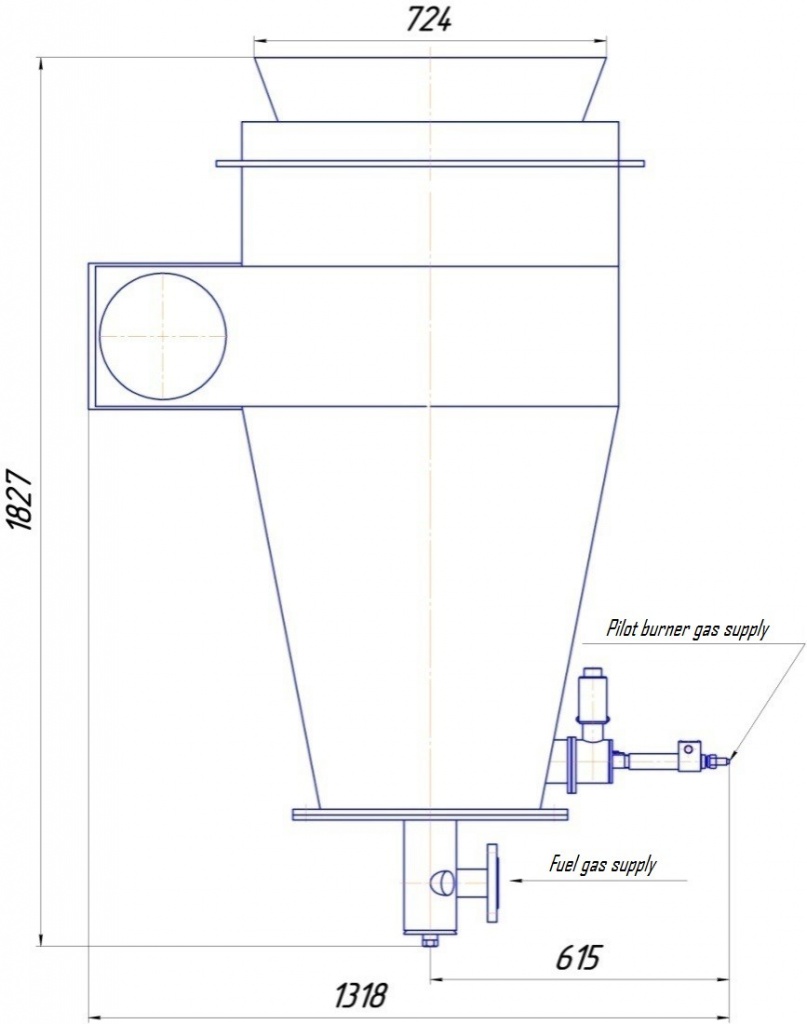

PTB-10А.02.02.000 combustion chamber general drawing.

GENERAL DATA

Combustion chamber designed for replacement of broken combustion chambers of modular tube furnaces as  PTB-10A, PTB-10E, PTB-5-40E, PTB-5-40A.

Certified as furnace component.

COMMON SPECIFICATIONS

№ п/п

Parameter

Value

1

 Gas pressure befor combustion chamber, MPa (kgf/cm2)

0.005…0.05

(0.05…0.5)

2

 Gas rate, nm3/hr.

400

3

 Mass, kg, max

325.5
